• 1 LCD Monitor In The Front
• 3 12V DC Power Outlets
• 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
• Analog Appearance
• Cargo Space Lights
• Day-Night Rearview Mirror
• Driver Foot Rest
• Fade-To-Off Interior Lighting
• Fixed Antenna
• Fixed Rear Windows and Fixed 3rd Row Windows
• Front Cupholder
• Full Cloth Headliner
• HVAC -inc: Underseat Ducts, Auxiliary Rear Heater and Headliner/Pillar Ducts
• Instrument Panel Bin, Driver / Passenger And Rear Door Bins
• Interior Trim -inc: Metal-Look Instrument Panel Insert
• Locking Glove Box
• Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints
• Manual Air Conditioning
• Manual Tilt/Telescoping Steering Column
• Partial Floor Console w/Storage and 3 12V DC Power Outlets
• Power 1st Row Windows w/Driver 1-Touch Down
• Power Door Locks w/Autolock Feature
• Rear Cupholder
• Rear HVAC
• Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button
• Removable Split-Bench Front Facing 4th Row Seat Number, Control and Type Head Restraint
• Urethane Gear Shifter Material

• 25 Gal. Fuel Tank
• 2900# Maximum Payload
• 3.73 Axle Ratio
• 4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist and Hill Hold Control
• 70-Amp/Hr Maintenance-Free Battery w/Run Down Protection
• Front Anti-Roll Bar
• GVWR: 9,000 lbs
• HD 150 Amp Alternator
• HD Gas-Pressurized Shock Absorbers
• Hydraulic Power-Assist Steering
• Rear-Wheel Drive
• Single Stainless Steel Exhaust
• Solid Axle Rear Suspension w/Leaf Springs
• Strut Front Suspension w/Coil Springs

• ABS And Driveline Traction Control
• AdvanceTrac w/Roll Stability Control Electronic Stability Control (ESC) And Roll Stability Control (RSC)
• Airbag Occupancy Sensor
• Back-Up Camera
• Dual Stage Driver And Passenger Front Airbags
• Dual Stage Driver And Passenger Seat-Mounted Side Airbags
• Low Tire Pressure Warning
• Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners
• Safety Canopy System Curtain 1st, 2nd And 3rd Row Airbags
• Side Impact Beams

ENGINE: 3.7L TI-VCT V6 W/98F

• SEIC capability

• ENGINE: 3.7L TI-VCT V6 W/98F -inc: SEIC capability
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Brake Assist
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Tow Hooks
• Power Mirror(s)
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• AM/FM Stereo
• Auxiliary Audio Input
• Rear Bench Seat
• Adjustable Steering Wheel
• 3rd Row Seat
• Keyless Entry
• Rear A/C
• Power Windows
• Stability Control
• Front Side Air Bag
• Tire Pressure Monitor
• Driver Air Bag
• Passenger Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Back-Up Camera
• Wheel Covers

• Vehicle
• Rear Door Type: Split Swing-Out
• Electrical
• Maximum Alternator Capacity (amps): 150
• Weight Information
• Base Curb Weight (lbs): 6034
• Gross Axle Wt Rating - Front (lbs): 4130
• Gross Axle Wt Rating - Rear (lbs): 5730
• Curb Weight - Front (lbs): 3105
• Curb Weight - Rear (lbs): 2929
• Gross Vehicle Weight Rating Cap (lbs): 9000
• Gross Combined Wt Rating (lbs): 10800
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4200
• Dead Weight Hitch - Max Tongue Wt. (lbs): 420
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 420
• Maximum Trailering Capacity (lbs): 4200
• Suspension
• Suspension Type - Front: Strut
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 4130
• Spring Capacity - Rear (lbs): 5730
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 4130
• Axle Capacity - Rear (lbs): 5515
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.1
• Rear Brake Rotor Diam x Thickness (in): 12.1
• Tires
• Front Tire Size: LT235/65SR16
• Rear Tire Size: LT235/65SR16
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): 6394
• Rear Tire Capacity (lbs): 5996
• Revolutions/Mile @ 45 mph - Front: 720
• Revolutions/Mile @ 45 mph - Rear: 720
• Wheels
• Front Wheel Size (in): 16 X 7
• Rear Wheel Size (in): 16 X 7
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 48
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 25
• Doors
• Side Door Type: Split Swing-Out
• Exterior Dimensions
• Wheelbase (in): 147.6
• Length, Overall (in): 237.6
• Width, Max w/o mirrors (in): 81.3
• Height, Overall (in): 82.4
• Ground to Top of Load Floor (in): 28.8
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 2 (in): 141.7
• Cargo Area Width @ Beltline (in): 69.8
• Cargo Box Width @ Wheelhousings (in): 53.7
• Cargo Box (Area) Height (in): 52.8
• Cargo Volume to Seat 1 (ft³): 285.9
• Cargo Volume to Seat 3 (ft³): 78.2
• Cargo Volume to Seat 4 (ft³): 78.2
• Interior Dimensions
• Passenger Capacity: 12
• Front Head Room (in): 40.8
• Front Leg Room (in): 39.7
• Front Shoulder Room (in): 67.9
• Front Hip Room (in): 67.5
• Second Head Room (in): 41.1
• Second Leg Room (in): 33.7
• Second Shoulder Room (in): 71.4
• Second Hip Room (in): 69.6
• Third Head Room (in): 40.6
• Third Leg Room (in): 35.6
• Third Shoulder Room (in): 67
• Third Hip Room (in): 67.3
• Summary

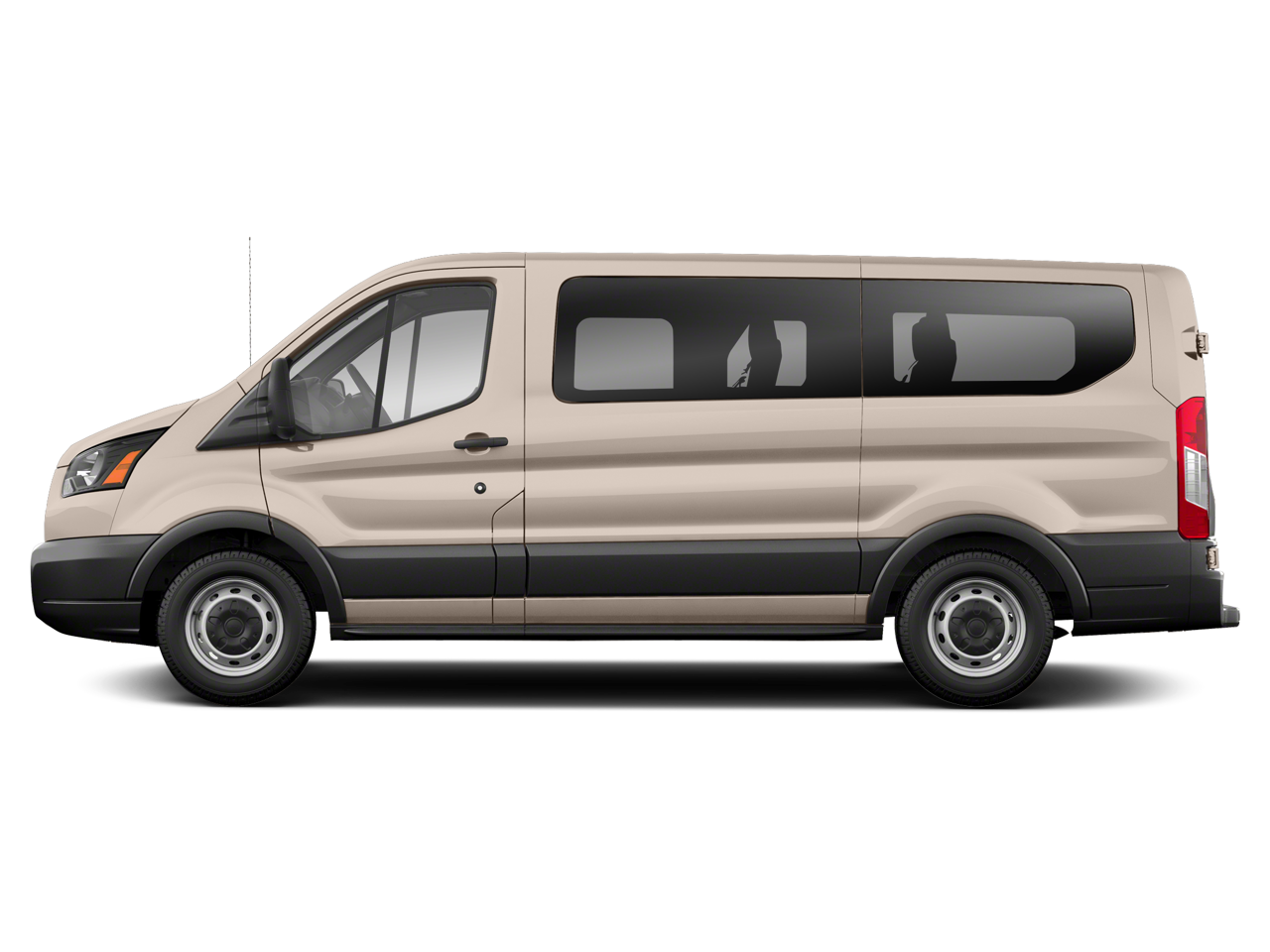

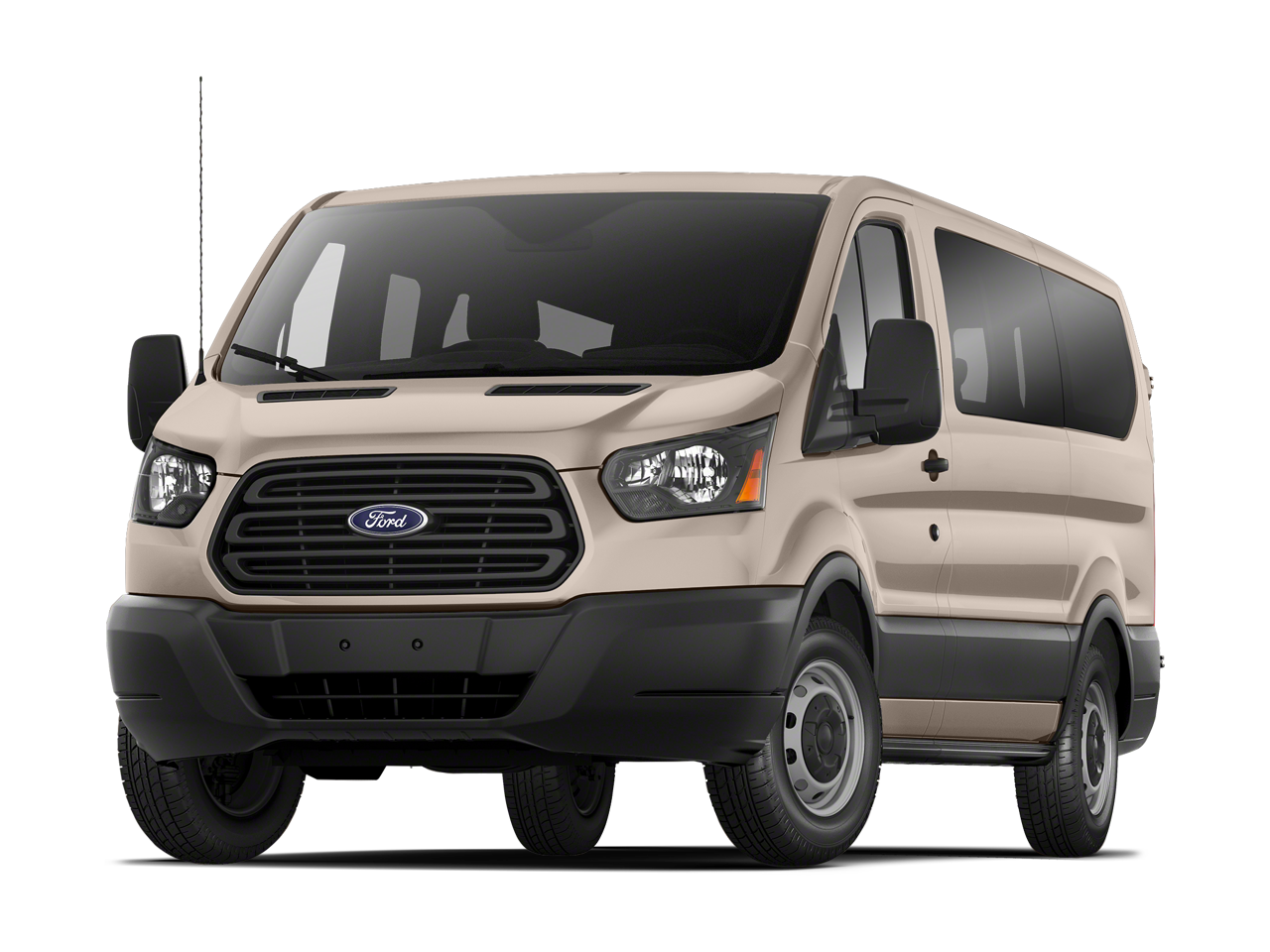

• Vehicle Name: Ford Transit Passenger Wagon
• Body Style: Low Roof Passenger Van
• Body Code: V
